SoundOff Signal 8-Button multi-purpose control panel Backlit
Product Details
Brand:
SoundOff Signal

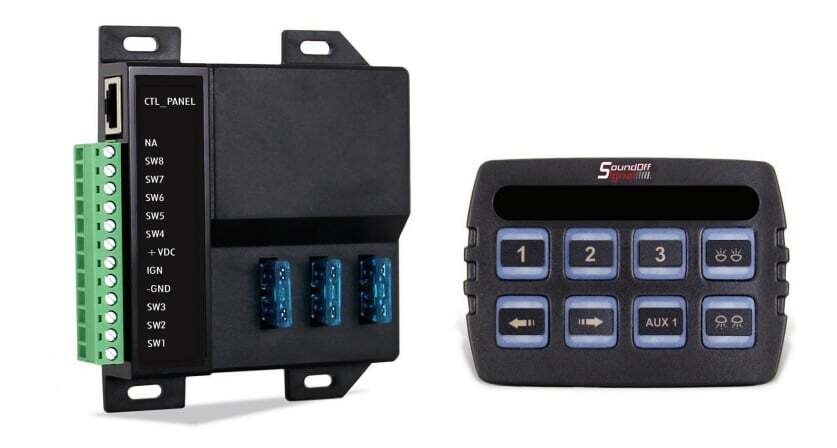

SoundOff Signal Multi-purpose Control Panel with Power Module
Streamlined 8-button controller, compatible with SoundOff Signal light bars and other led products.
Features:
• Eight switches control panel with three 10 amp and five 0.2 amp outputs for auxiliary device power or function activation
• All back lit rubber touch buttons (Red when Off / Green when On)
• Fully programmable buttons in ON/OFF or momentary switch mode
• Ten LED signal indicator for light bar or traffic arrow
• 35 selectable icon stickers to clearly label panel
• European siren interlock compatible
ETCPMSW830
INPUT VOLTAGE: 10-24 Vdc
INPUT CURRENT: Peak 32A, Average 21A / Min 0.01A
CONTROL PANEL: CABLE 8 pin RJ45 cable, 24 AWG, 4m
OPERATING TEMPERATURE: -30° C to +65° C
DIMENSIONS: Control Panel - Length 3.74" x Height 2.7" x Depth 1"
Power Module - Length 4.4" x Height 3.5" x Depth 1.05"
WARRANTY: One-year
